1. Diagnosis: Why is the axe loose?
Drying out: The wood of the handle has shrunk, reducing the fit in the axe eye (the hole in the head).
Wear and tear: The existing wedge has come loose or the wood has lost tension.
2. The method: The wedge construction
What you'll need
New wooden wedge: Preferably use a hardwood like oak or maple. It should be slightly thicker than the split in the handle.
Wood glue (optional): A good quality wood glue (D3-class, waterproof) strengthens the bond.
Hammer: Preferably a wooden or rubber hammer.
Saw and chisel: For finishing off the protruding parts.
Step-by-step instructions
Preparation: Drive the axe head as far as possible onto the handle. Make sure the handle sticks out about 1-2 mm at the top (in the eye).
Sawing the split: If there's no split yet or one that's too shallow in the handle, saw a notch lengthwise along the handle (from top to bottom) that covers roughly 2/3 of the depth of the axe eye.
Adjusting the wedge: Taper the wedge with a plane or sandpaper.
Gluing and driving: Apply a thin layer of wood glue to the wedge. Place the wedge in the split and drive it firmly into the handle with the hammer. Caution: Don't drive it so hard that you split the handle; stop when the wedge hits 'solid' and won't go any further.
Finishing: Let the glue cure for at least 24 hours. Then saw off the protruding parts of the handle and wedge flush with the axe head.

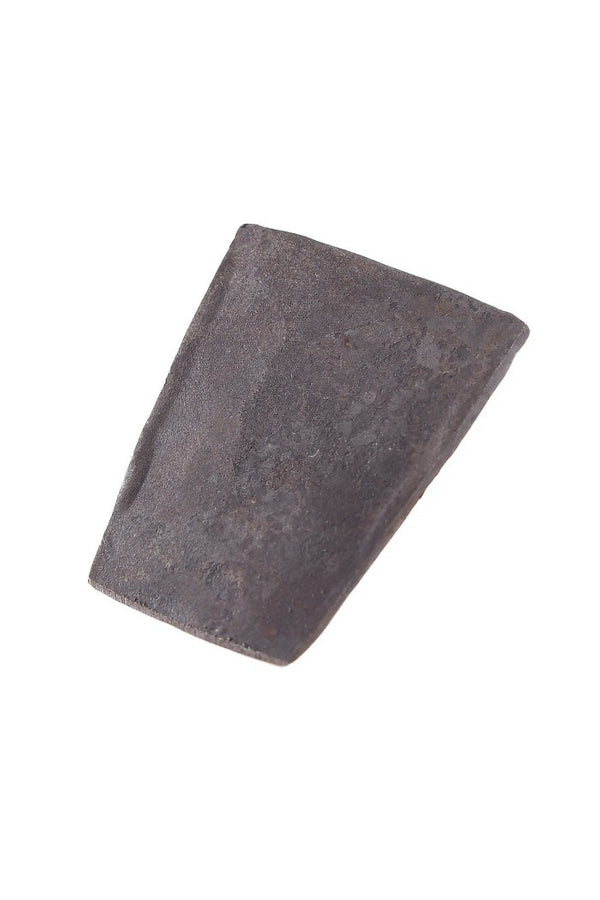

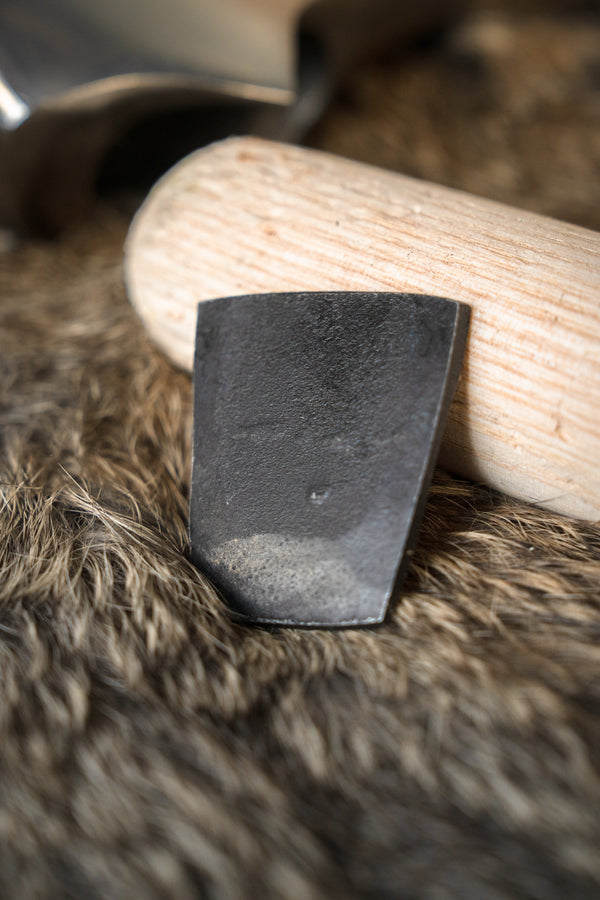

3. The "Pro-Tip": The metal wedge (Extra security)
For maximum safety, professionals often use a metal cross-wedge alongside the wooden wedge.
Why? A metal wedge is driven diagonally into the wooden wedge. This spreads the wood not just forward and backward, but in all four directions of the axe eye. This creates an immovable bond.
Workshop checklist
[ ] Hardwood wedge (custom-made).
[ ] Wood glue (D3 waterproof).
[ ] Hand saw.
[ ] Metal cross-wedge (for ultimate fixation).
[ ] Flat file (to finish the top neatly after sawing).
Important warning: Never use nails or screws to secure an axe. This damages the wood fibers and will eventually work the handle out of the head. A wooden wedge is the only historically correct and technically proper method.
